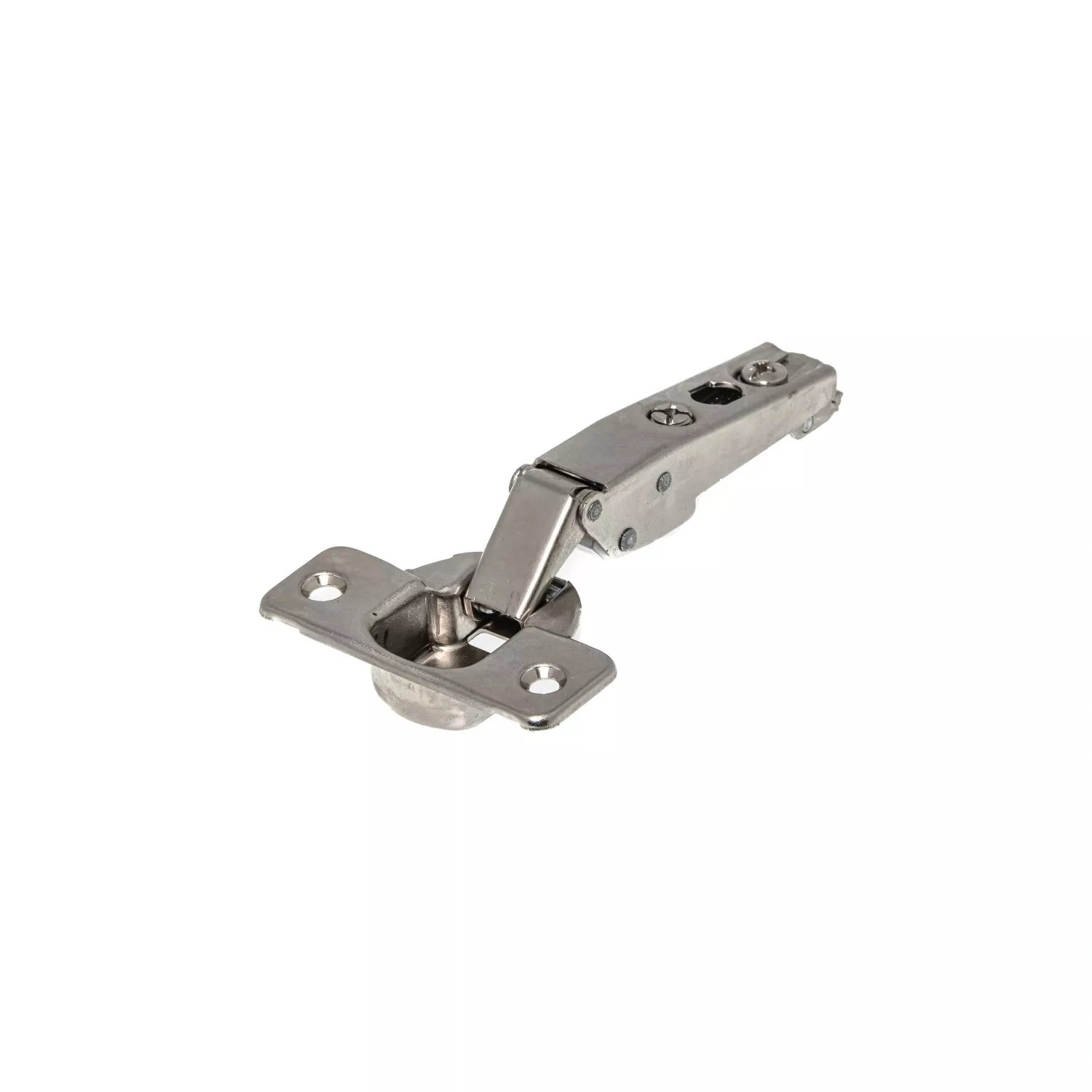

Nexis 125° Grass Hinge
Self-closing kitchen door hinge Nexis with 125 degree angle from Grass.
Watch this product and we will notify you once it is back in stock.
Nexis 125° Grass Hinge
Self-closing kitchen door hinge Nexis with 125 degree angle from Grass.
Description

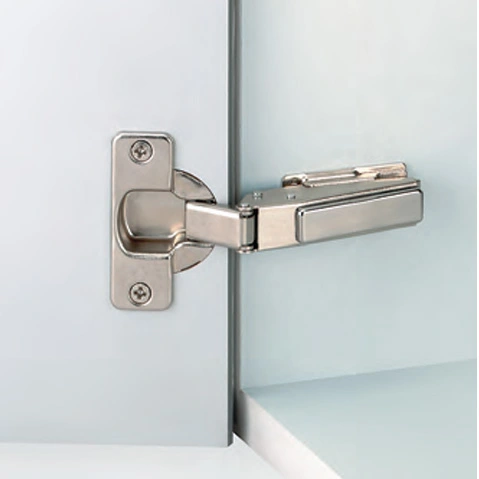

Nexis 125 degree hinge from Grass. The hinges are equipped with a proven Click-On technology in the hinge arm which forms a solid base for attaching the hinges to the cabinet without the need for any tools. Just press with a finger and the hinge locks into place on the mounting plate with an audible "click". The hinge can be detached from the Click-on mounting plate simply by unlocking it if you then need to detach the door.
- 125° opening angle

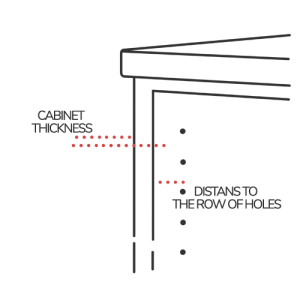

- Optimal opening for cabinets with up to 19 mm thick sides.
- With self-closing mechanism
- 3-dimensional adjustability
Measures
Measures
CC-size | Drill dimensions: Width & Depth | Opening angle |
45 (mm) | 35x11,8 (mm) | 125° |
More info
Material
- Nickel-plated steel
Recommended number of hinges per door
- 0-900 mm height & up to 7 kg weight: 2 hinges
- 901-2000 mm height & up to 17 kg weight: 3 hinges
- 2001-2300 mm height & up to 20kg weight: 4 hinges
