Tiomos 110° with mounting plate
Watch this product and we will notify you once it is back in stock.

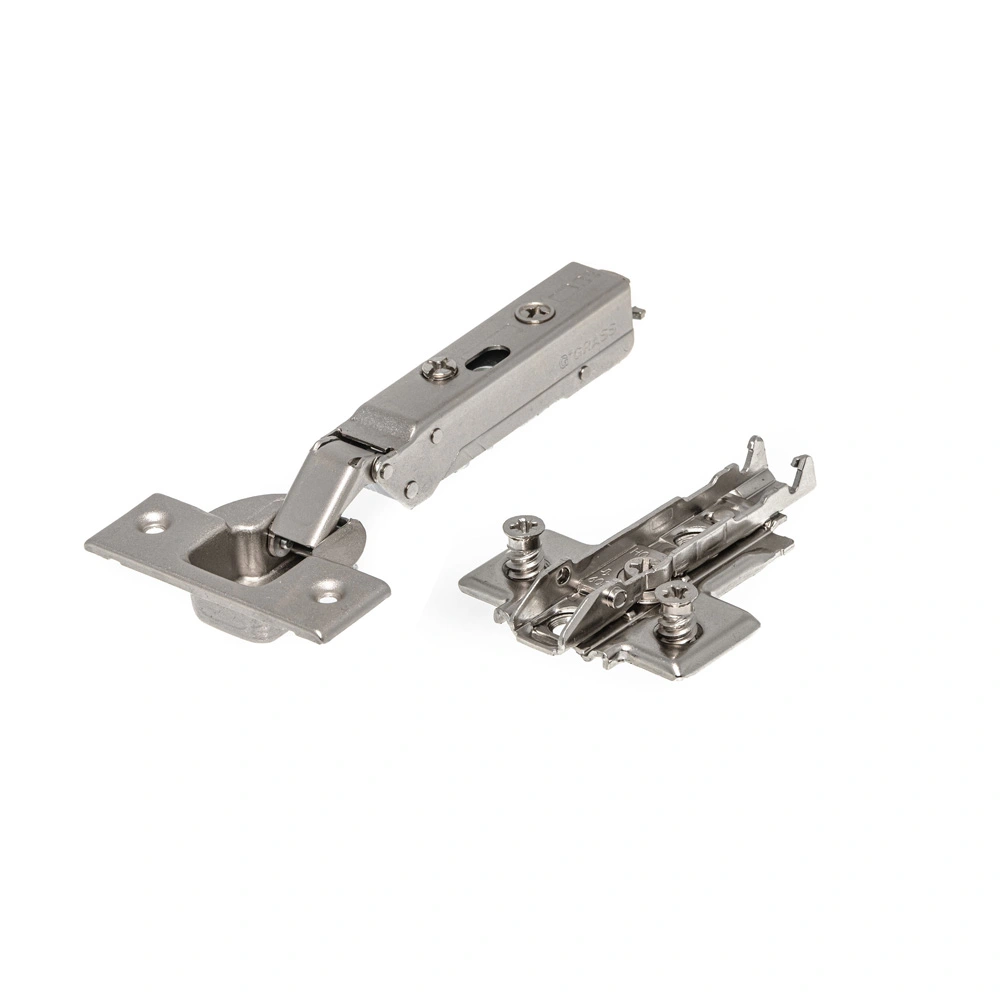

Tiomos 110° with mounting plate
Description

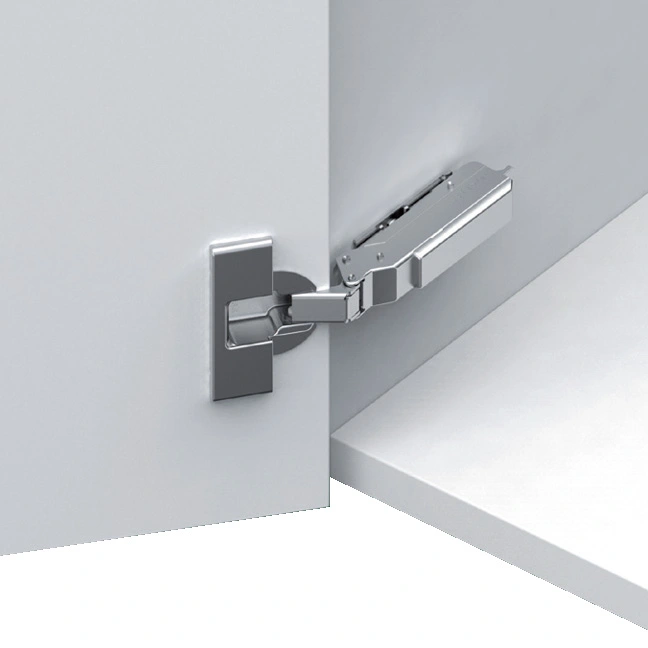

Tiomos 110 degree hinge from Grass. Integrated soft-close, a stylish design and maximum stability - Tiomo's hinges are the best hinge solution for cabinet doors in the kitchen. The hinges are equipped with a click-on technology in the hinge arm, which makes installation easier. Just press with a finger and the hinge locks onto the mounting plate with an audible "click". The hinge can then be easily detached from the Click-on mounting plate by unlocking it if you need to detach the door.
- 110° opening angle
- Optimal opening for cabinets with up to 19 mm thick sides.
- With self-closing mechanism
- 3-dimensional adjustability
- The soft-close effect can be adjusted as desired.
- Supplied complete with mounting plate and soft close.
Measures
Measures
CC-size | Drill dimensions: Width & Depth | Opening angle |
45 (mm) | 35x11,8 (mm) | 110° |
More info
Material
- Nickel-plated steel
Recommended number of hinges per door
- 0-900 mm height & up to 7 kg weight: 2 hinges
- 901-2000 mm height & up to 17 kg weight: 3 hinges
- 2001-2300 mm height & up to 20kg weight: 4 hinges
Soft-Close Adjustments
- Light setting - for small, light doors
- Medium setting - for standard doors
- Strong setting - for large, heavy doors
