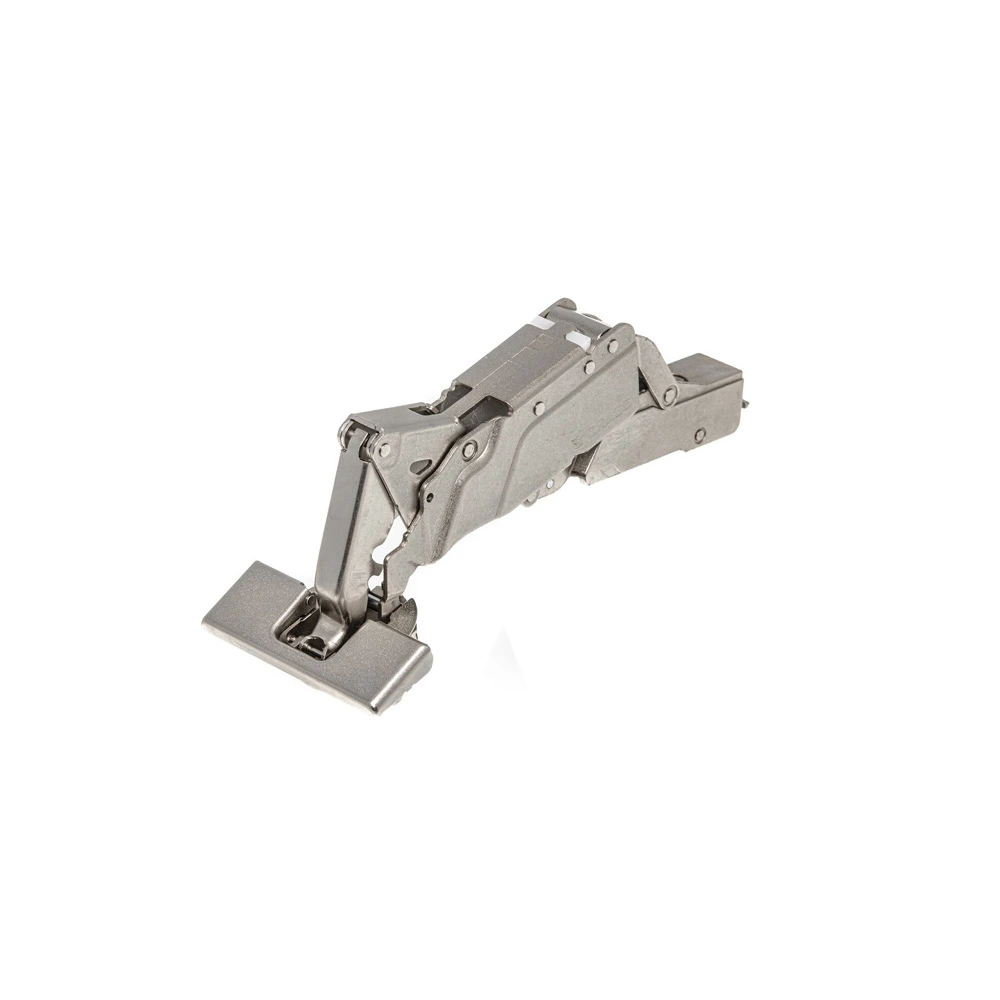

Tiomos 155° Impresso Grass HInges

Description

Tiomos 155 degree hinge from Grass. Integrated soft-close, a stylish design and maximum stability - Tiomo's hinges are the best hinge solution for cabinet doors in the kitchen. The hinges are equipped with a click-on technology in the hinge arm, which makes installation easier. Just press with a finger and the hinge locks onto the mounting plate with an audible "click". The hinge can then be easily detached from the Click-on mounting plate by unlocking it if you need to detach the door.

• 155° opening angle
• Optimal opening for cabinets with up to 19 mm thick sides.
• With self-closing mechanism

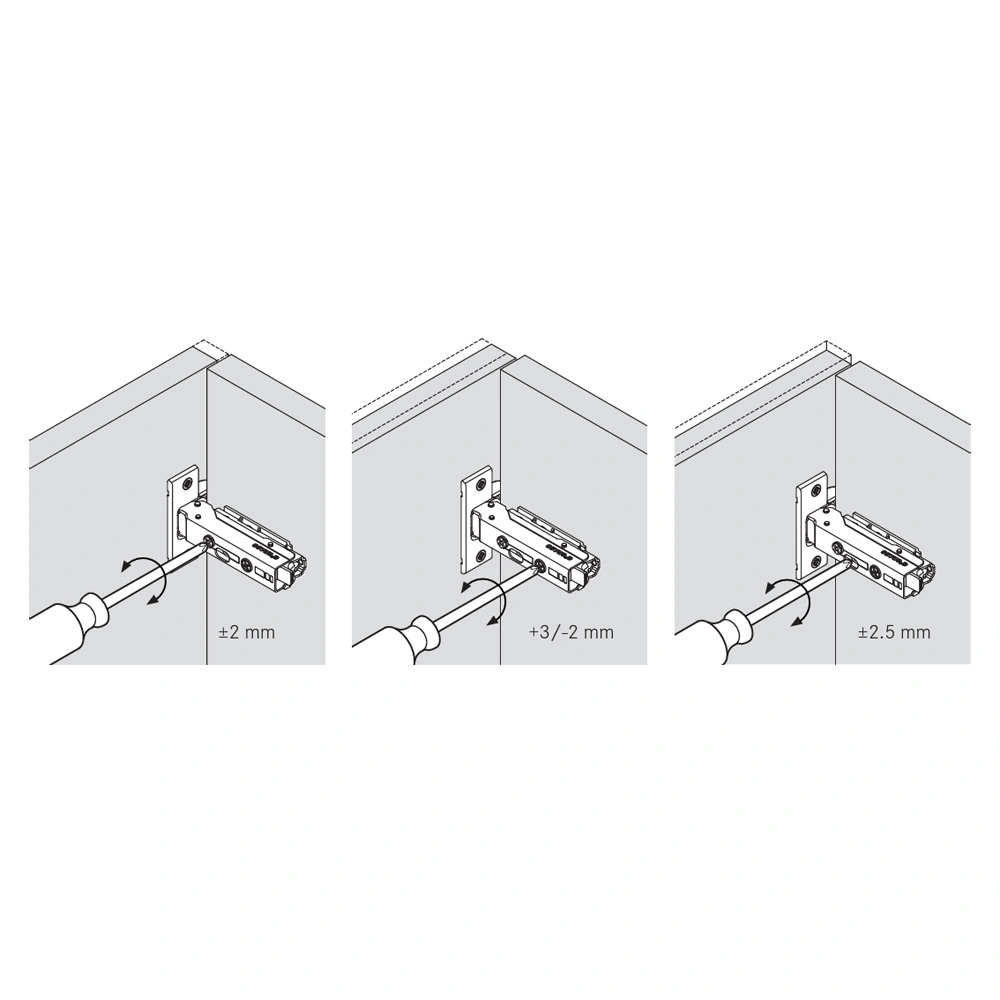

• 3-dimensional adjustability

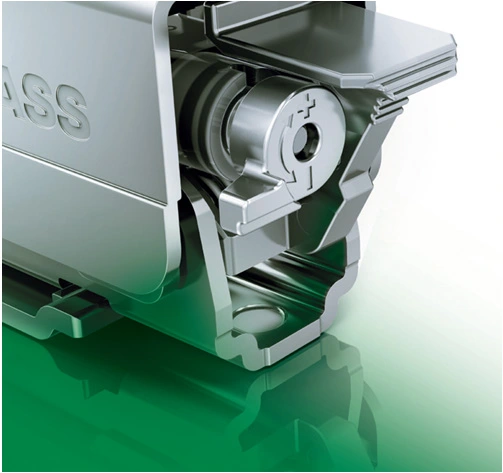

• The soft-close effect can be adjusted as desired.

Measures

Measures

More info

Material

• Nickel-plated steel

Recommended number of hinges per door

• 0-900 mm height & up to 7 kg weight: 2 hinges
• 901-2000 mm height & up to 17 kg weight: 3 hinges
• 2001-2300 mm height & up to 20kg weight: 4 hinges

Soft-Close Adjustments

• Light setting - for small, light doors
• Medium setting - for standard doors
•  Strong setting - for large, heavy doors
